Cemented Carbide Ballnose Blanks
Hyperion Code: RY
Dimensions: Metric or Imperial
Description: Cut to length cemented tungsten carbide solid ballnose blanks. Options on carbide grade, rod diameter, length, and finish. Ground to finished diameter available.

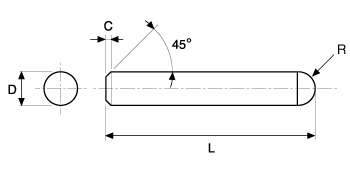

Ground - Fixed Length Ballnose Carbide Rods
Your Hyperion salesperson is available to offer their expertise in selecting the high performance or application specific cemented carbide rod best suited to solve your needs. We offer both standard stock rods and rods customized to position you to win.
| Size | D (mm) | L (mm) | Chamfer Size (mm) | Diameter Tolerance (ISO) | Length Tolerance (%) |
|---|---|---|---|---|---|
| Size | D (mm) | L (mm) | Chamfer Size (mm) | Diameter Tolerance (ISO) | Length Tolerance (%) |
|
Minimum |
6.0 |
100 |
0.3 |
h6 |
-0 / +1% |
|
Maximum |
25.0 |
100 |
1.0 |
h6 |
-0 / +1% |

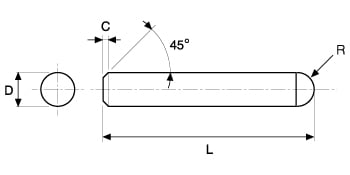

Ground - Variable Length Ballnose Carbide Rods
| Size | D (mm) | L (mm) | Chamfer Size (mm) | Diameter Tolerance (ISO) | Length Tolerance (%) |
|---|---|---|---|---|---|
| Size | D (mm) | L (mm) | Chamfer Size (mm) | Diameter Tolerance (ISO) | Length Tolerance (%) |
|
Minimum |
6.0 |
58.0 |
0.3 |
h6 |
-0 / +1% |
|
Maximum |
25.4 |
101.8 |
1.0 |
h6 |
-0 / +1% |
Available Cemented Carbide Grades
| Grade | Stocked | Grade Description |
|---|---|---|
| Grade | Stocked | Grade Description |
|
H10F |
Yes* |
Grade H10F offers superior consistency batch to batch in combination with strength, toughness, wear resistance, and edge sharpness. |
|
H6N |
Yes* |
Grade H6N is recommended for rotary tool applications in the C2 (ISO K20) range. It exhibits excellent performance when machining a wide range of materials. |
|
H12F |
Yes* |
Grade H12F offers greater edge toughness in operations requiring superior edge security and reliability. |
*Contact your Hyperion salesperson for standard stock availability.
